Size Customization

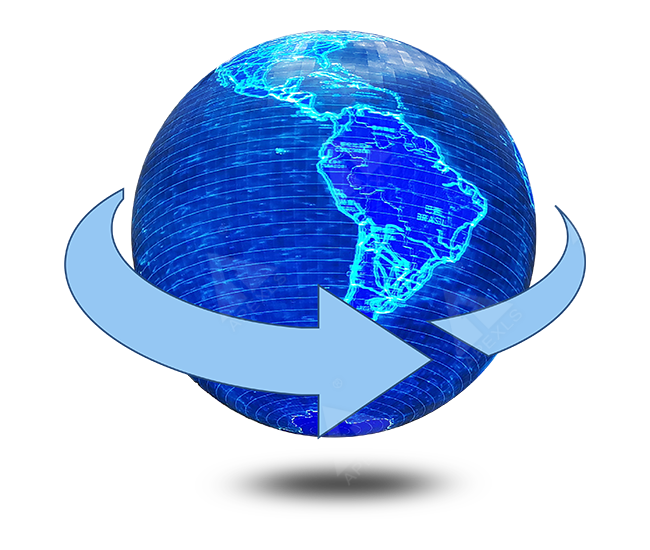

360 view angle
Model(mm): P4.8，P5，P6 ，P8 ，P10

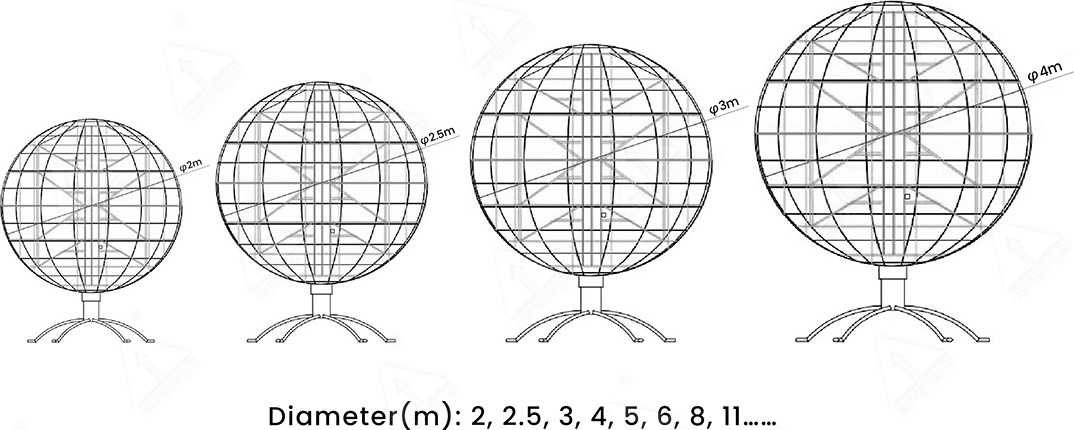

Diameter(m)：2，2.5，3，4，5，6，8，11

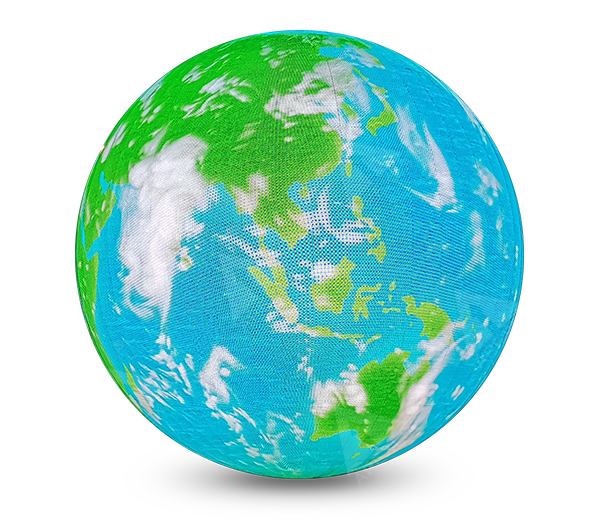

Apexls offers the Outdoor KSO Series spherical LED display screen, combining patented technology with advanced manufacturing for superior visual performance. We support full customization of diameter, model, and pixel pitch to meet diverse business needs. Built for durability and high brightness, these displays deliver exceptional viewing experiences even in outdoor environments. With numerous successful large-scale applications worldwide, Apexls stands as a leader in innovative LED display solutions.
Our spherical LED display screens are widely used in high-profile locations such as museums, planetariums, science and technology centers, and children’s palaces. They also create stunning visual effects in exhibition halls, gymnasiums, waiting areas, hotels, and large open-air venues. In addition, these displays are increasingly adopted in railway stations, ports, shopping malls, and bars, where immersive visual experiences captivate audiences and enhance brand exposure.

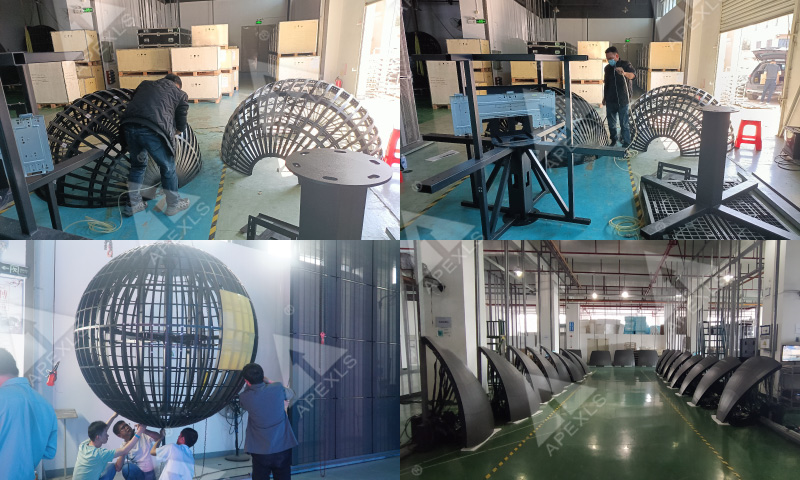

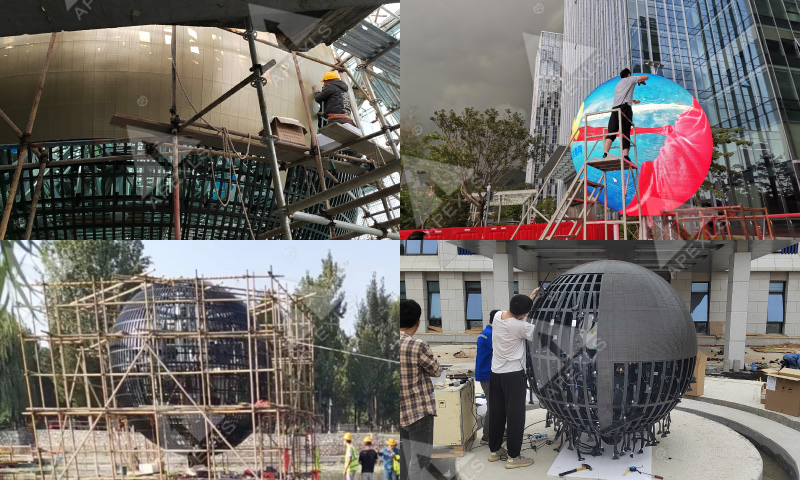

According to the design plan, make the steel structure for the shell of the spherical screen. The shell is usually made of metal material and has characteristics such as waterproof, dustproof, and earthquake resistance.
Install the LED module onto the surface of the casing steel structure and connect it to the power supply and control system. Then debug to ensure the normal operation and display effect of the LED spherical screen

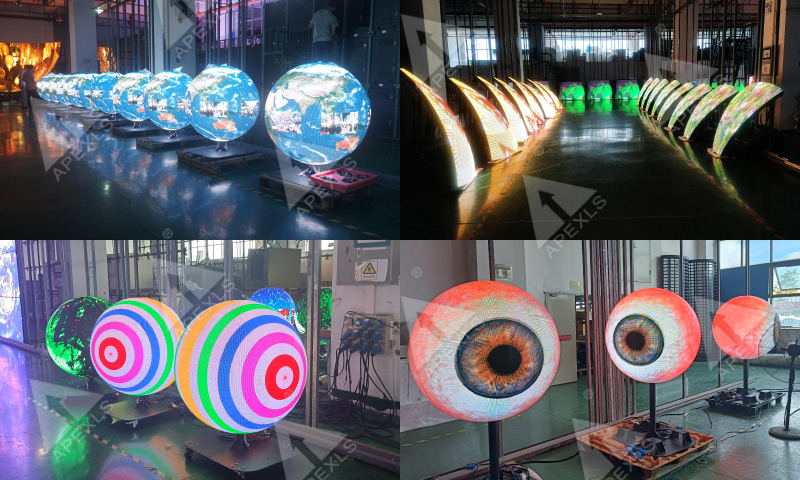

Ensure lighting for 72 hours
Install the assembled spherical screen in the designated position and perform debugging. Debugging includes adjusting parameters such as brightness, color, and display effects to ensure the normal operation of the spherical screen.

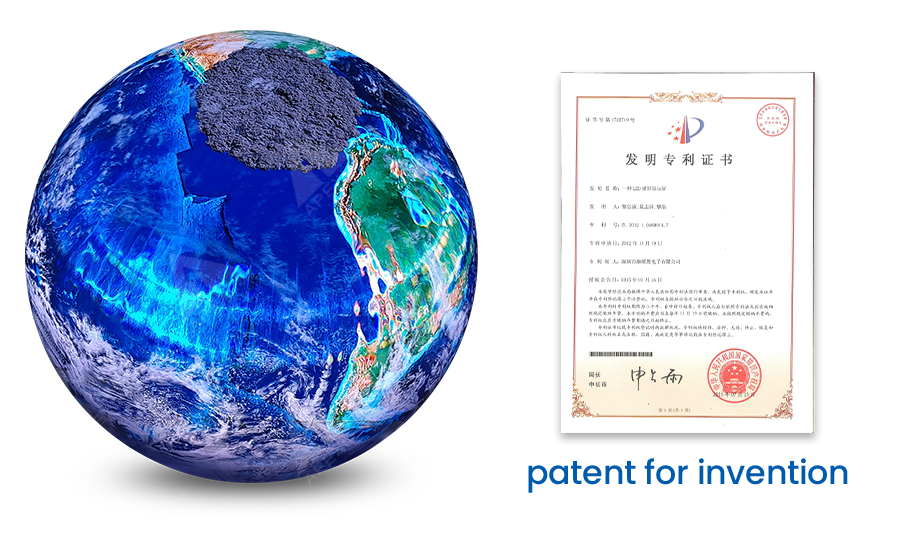

First one design in led screen industry , get new record for shenzhen enterprises.
Max diameter 17m and other 16.3m 14m 1lm 8m7.2m 6m 5m

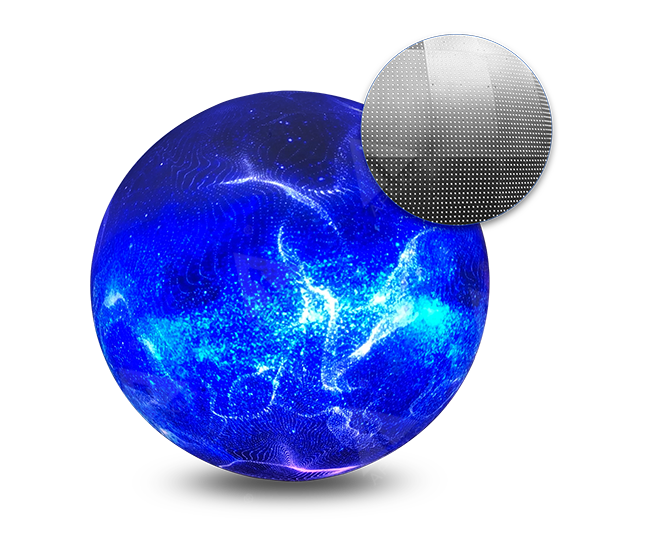

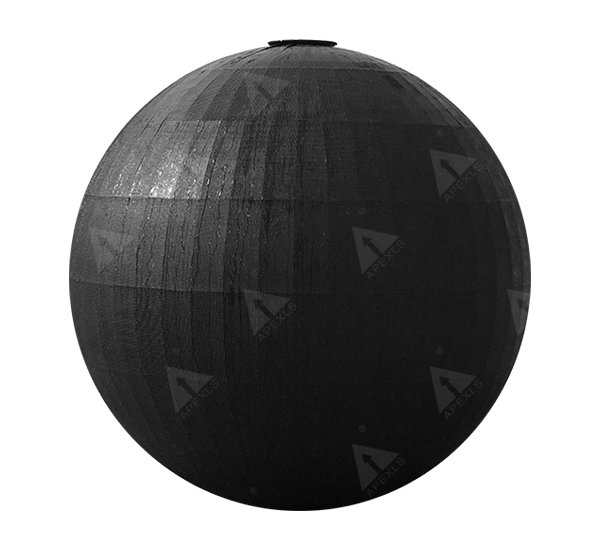

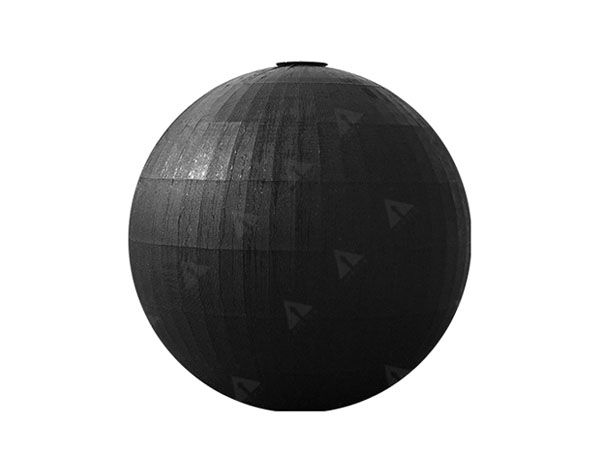

Not lighting up is also a beautiful sight
Customizable pixel pitch and diameter

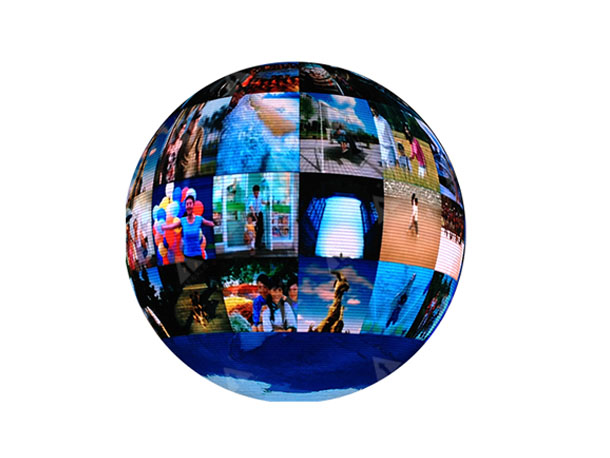

High impact visual, good eye-catching

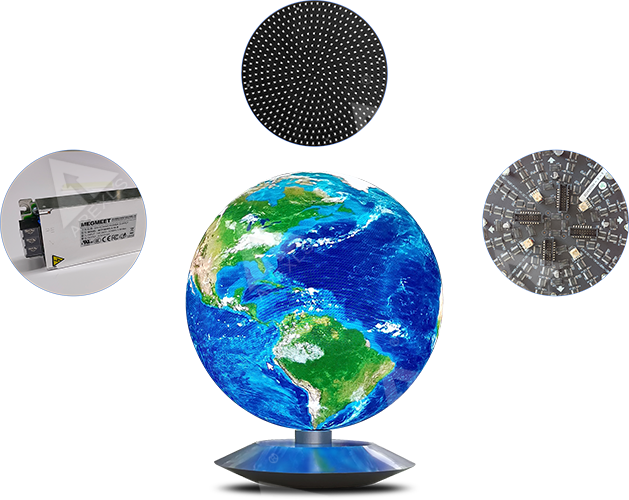

High qualitu LED beads, high brush IC, power supply

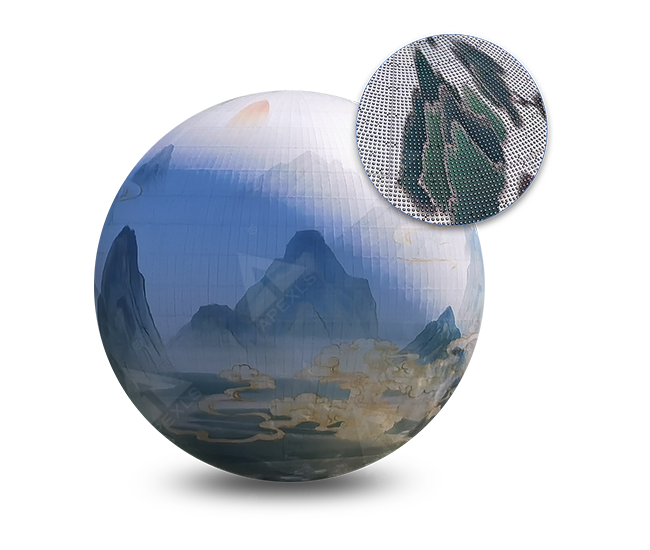

Customized PCB design with seamless splicing, tolerance 0.2mm
Waterproof, moisture-proof, dust-proof, sun-proof, cold-resistant
| Outdoor | |||||
| Model | P4.8 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4.8 | 5 | 6 | 8 | 10 |
| Diameter(m) | 2, 4 | 2.5 | 2，3 | 5 | 2，6，8,11 |
| LED Type | SMD1515 | SMD1515 | SMD1921 | SMD2727 | SMD3535 |
| Pixel Density(dots/m2) | 43402 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/m2) | 5000 | 5000 | 5000 | 5000 | 7500 |
| Avg Power Consumption(W/m2) | 400 | 400 | 350 | 260 | 450 |
| Max Power Consumption(W/m2) | 1000 | 1000 | 800 | 650 | 1100 |
| Refresh Rate(Hz) | 1,920-3,840 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||

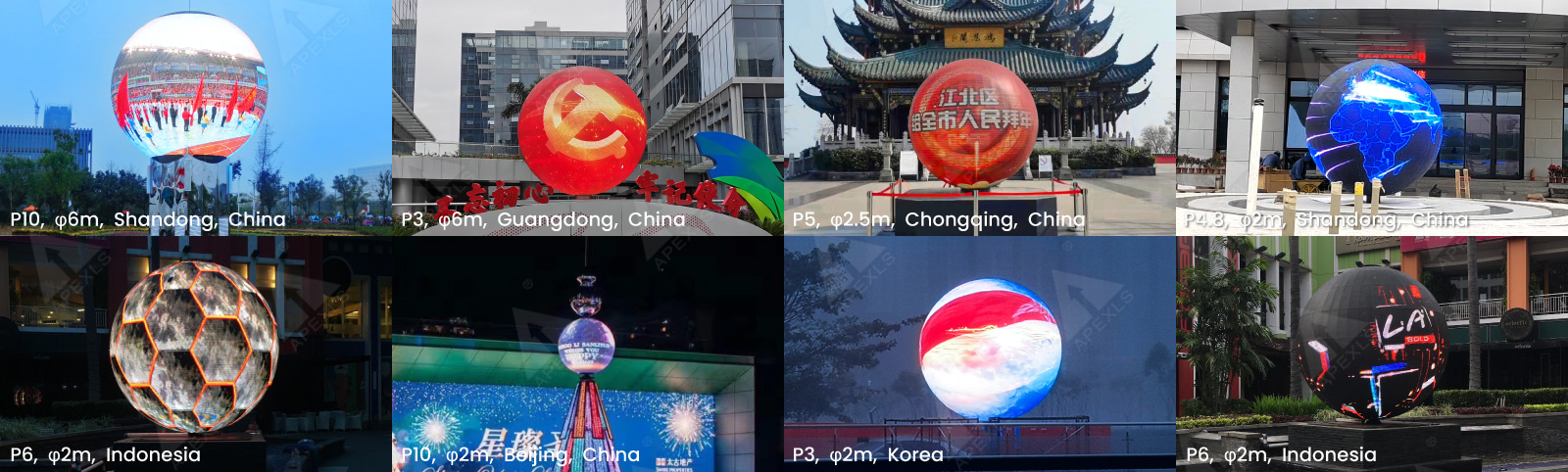

0

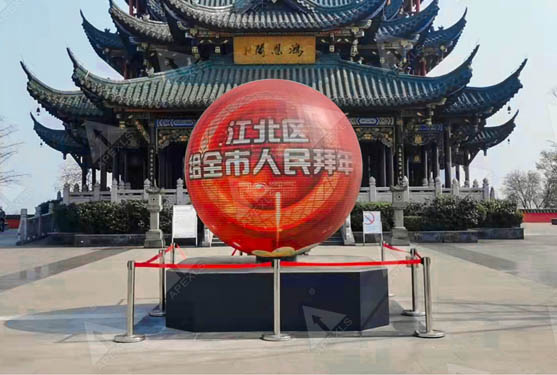

· Product: P5
· Screen Size: φ2.5m
· Location: Chongqing, China
0

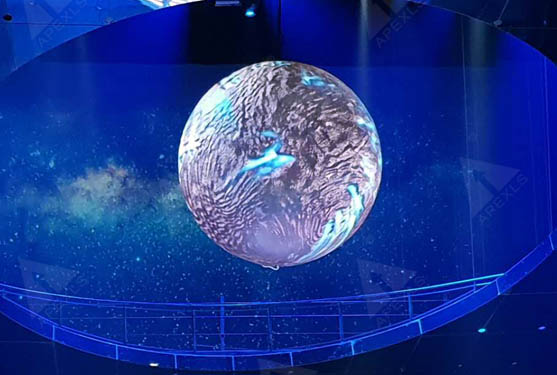

· Product: P5
· Screen Size: φ2.5m
· Location: Jerusalem, Israel
0
· Product: P4
· Screen Size: φ2.5m
· Location: Zhejiang, China
