Maximum 22° concave
Can be assembled at right angles
Model(mm): P1.9，P2.5，P2.9，P3.9
Cabinet Size(mm): 500×250，750×250，1000×250
Apexls’ KL Series indoor LED display board features multiple pixel pitch options to meet diverse visual needs. Its thin LED module design and cutting-edge structure deliver sharp, vivid visuals for any indoor environment.
The display board is ideal for conference rooms, hotels, shopping malls, monitoring centers, studios, and stage backgrounds. It provides stable performance and excellent image quality across professional settings.
With a cabinet thickness of only 43mm, this indoor LED display board combines a sleek look with strong hardware backup support, ensuring continuous and reliable operation.

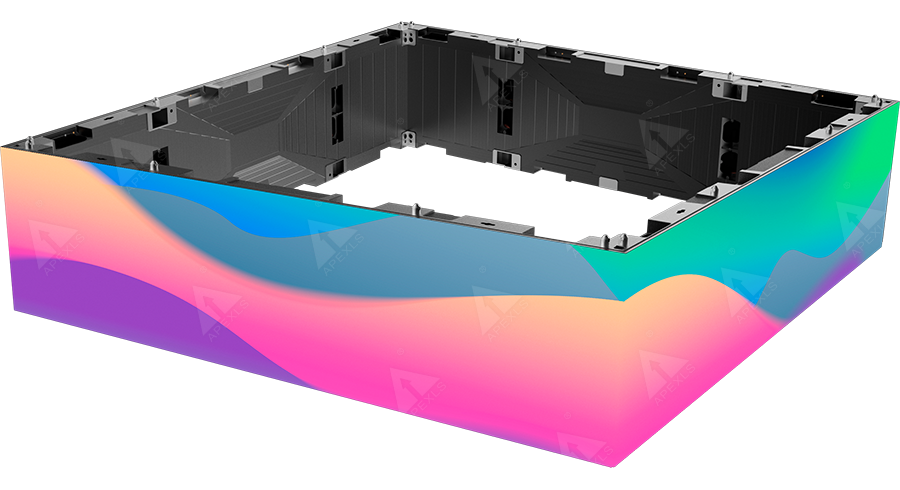

The KL Series supports right-angle installation using multi-lock positioning. Its precision connection ensures seamless joints with an error margin below 0.05mm for perfect alignment.
By combining a standard box with an angle block and custom inner arc kit, the display achieves up to a 22° concave curve, creating smooth arcs and stunning visual effects for creative spaces.

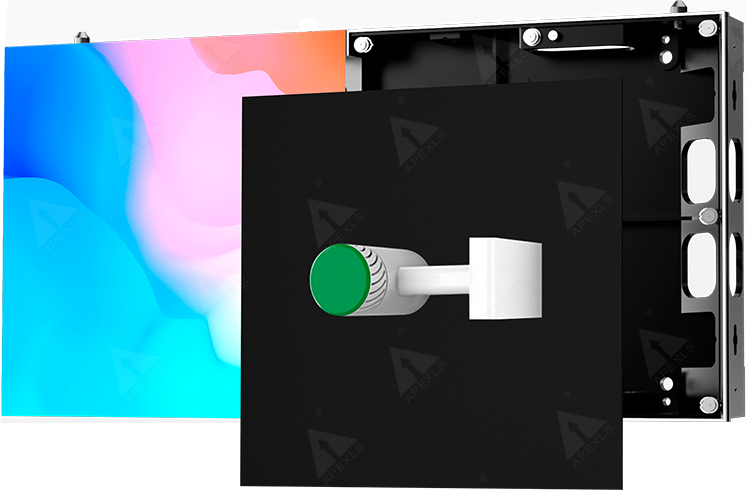

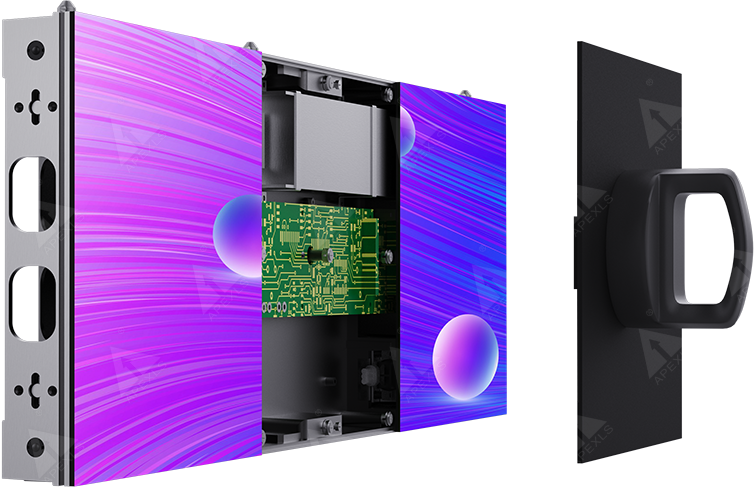

This indoor LED display board supports complete front maintenance, eliminating the need for a rear service channel, which simplifies installation and saves valuable space.

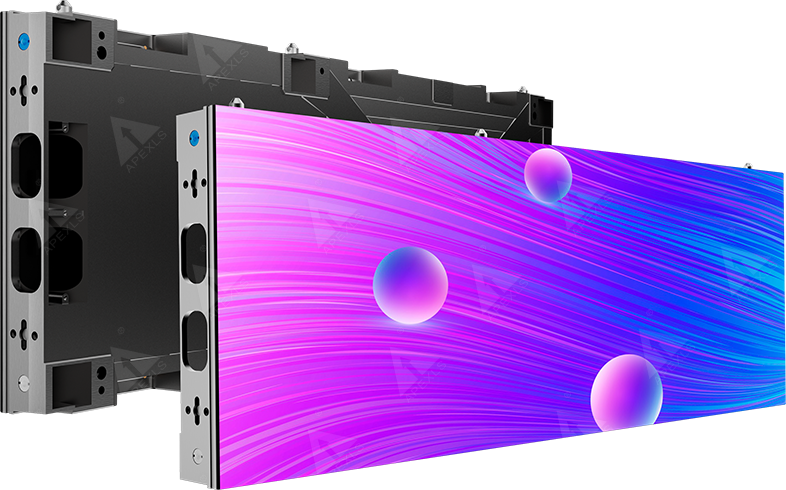

Made with a die-cast aluminum frame, the cabinet maintains high strength and zero deformation. Multiple sizes are available to suit various indoor installation environments and project demands.
| Model | P1.2 | P1.5 | P1.9 | P2.5 | P2.9 | P3.9 |
| Pixel pitch(mm) | 1.250 | 1.560 | 1.953 | 2.5 | 2.976 | 3.906 |
| Pixel density (pixels) | 640,,000 | 409,600 | 262,178 | 160,000 | 112,910 | 65,536 |
| LED config | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution(pixels) | 200×200 | 160×160 | 128 x 128 | 100 x 100 | 84×84 | 64 x 64 |
| Cabinet size (mm) | 1000 x 250 /750 x 250 / 500 x 250 ( 43mm thickness ) | |||||
| Cabinet weight(kg/m²) | 1000x250mm 6kg / 750x250mm 5.1kg / 500x250mm 35kg | |||||
| Cabinet material | Die-casting aluminium | |||||
| Service | Front service | |||||
| Brightness(nits) | 600-800 | 600-800 | 600-800 | 800-1,100 | 800-1,100 | 800-1,100 |
| Refresh rate (Hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Gray scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Brightness control | 256 | 256 | 256 | 256 | 256 | 256 |
| Ave.Power consumption(W/m²) | 267 | 267 | 267 | 267 | 267 | 267 |
| Max.Power consumption(W/m²) | 570-620 | 570-620 | 570-620 | 570-620 | 570-620 | 570-620 |
| Input power frequency | ＞ 60 Hertz | |||||
| Operating voltage | AC100V-240V 50-60Hz | |||||
| Blind spot rate | ＜1/10,000 | |||||
| Lifetime（hours） | 100,000 | |||||
| MTBF(hours) | >10,000 | |||||
| Operating temperature(℃) | ﹣30～﹢50 ℃ | |||||
| Operating humidity | 10％ ～ 90％ | |||||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Operating system | Windows | |||||
| Certificate | CE ETL FCC RoHS | |||||
