Waterproof
Transparent
Model(mm): P3.91-7.81, P7.81-7.81, P10.416-10.416

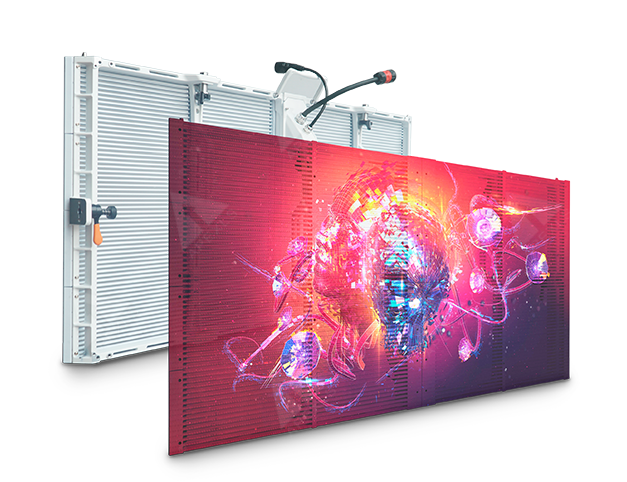

The Apexls LSO Series outdoor transparent LED display is designed to overcome the limits of traditional outdoor screens. With its ultra-thin, lightweight, and waterproof cabinet, it perfectly integrates with glass facades and large windows, bringing digital creativity to commercial buildings.
The outdoor transparent LED display is widely used in airports, train stations, theaters, shopping malls, building facades, and outdoor events. Its bright visuals and flexible installation make it ideal for both advertising and architectural decoration.

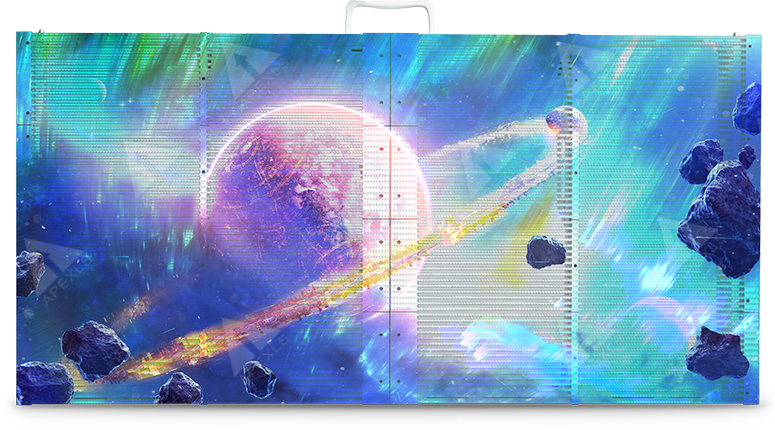

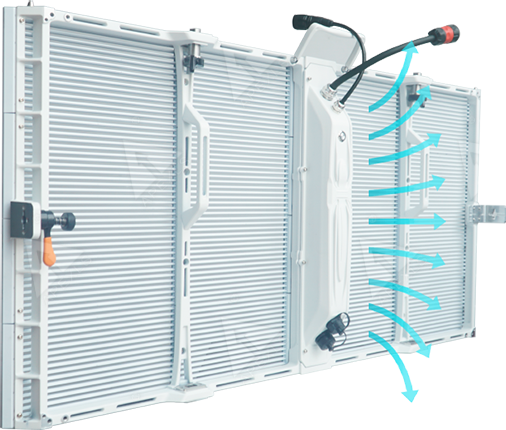

Featuring a 60% light transmittance, this display maintains natural indoor lighting while preserving the architectural aesthetics. The precision aluminum cabinet ensures excellent heat dissipation, providing durability and a refined appearance for long-term outdoor use.

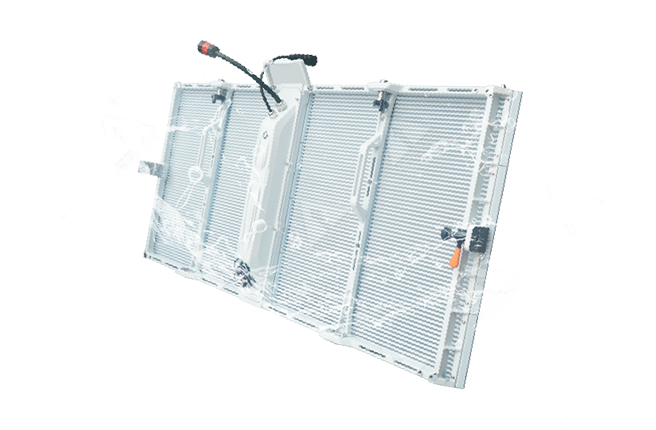

The outdoor transparent LED display adopts a fully sealed design with lamp bead sealant and waterproof power boxes. Its IP65-rated protection ensures stability under rain and dust, making it suitable for harsh outdoor conditions and long service life.
The advanced multi-lock positioning system enables a seamless connection with an error margin of less than 0.05mm. This precision assembly guarantees smooth visuals and consistent color performance, even on large-scale installations.

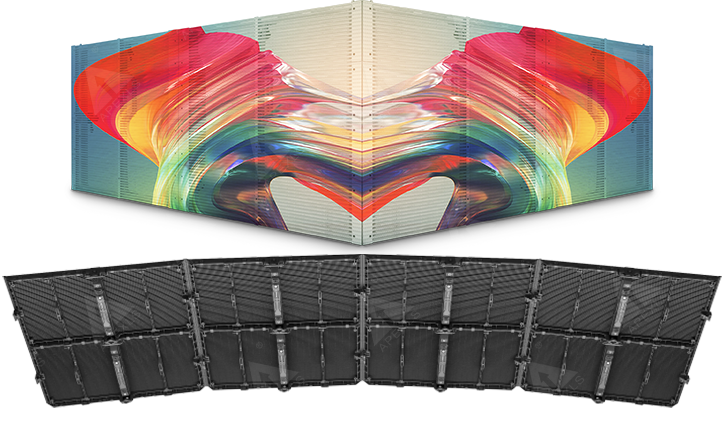

Equipped with an arc lock design, the LSO Series can be flexibly spliced into curved, square, or cylindrical shapes. This feature allows designers to create unique, immersive visual structures, perfect for landmarks, exhibitions, and brand showcases.
| Model | P3.91-7.81 | P7.81-7.81 | P10.416-10.416 |
| Pixel pitch(mm) | 3.91-7.81 | 7.81-7.81 | 10.416-10.416 |
| Pixel density(dots/m²) | 32,768 | 16,384 | 9,216 |
| Permeability(%) | 49% | 49% | 58% |
| LED type | SMD1921 | SMD1921 | SMD2727 |
| Module size(mm) | 500×125 | 500×125 | 500×125 |
| Module resolution(dots) | 128×16 | 64×16 | 48×12 |
| Brightness(cd/m²) | 3000-5000 | 3000-5000 | 5,000 |
| Avg power consumption(W/m²) | 450 | 450 | 400 |
| Max power consumption(W/m²) | 1000 | 1000 | 800 |
| Scan mode | 1/8 | 1月8日 | 1/2 |
| Gray scale(bit) | 16 | 16 | 16 |
| Size(mm) | 1000×500 | 1000×500 | 1000×500 |
| Weight(kg) | 9.0 | 9 | 9 |
| Cabinet material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Refresh rate(Hz) | 1920-3840 | 1920-3840 | 3840 |
| Cabinet color | Black/white | ||
| Working environment | Outdoor | ||
