Size ratio 16:9
4K/8K Ultra HD
Ultra light and thin
Model(mm): P0.93，P1.25，P1.56

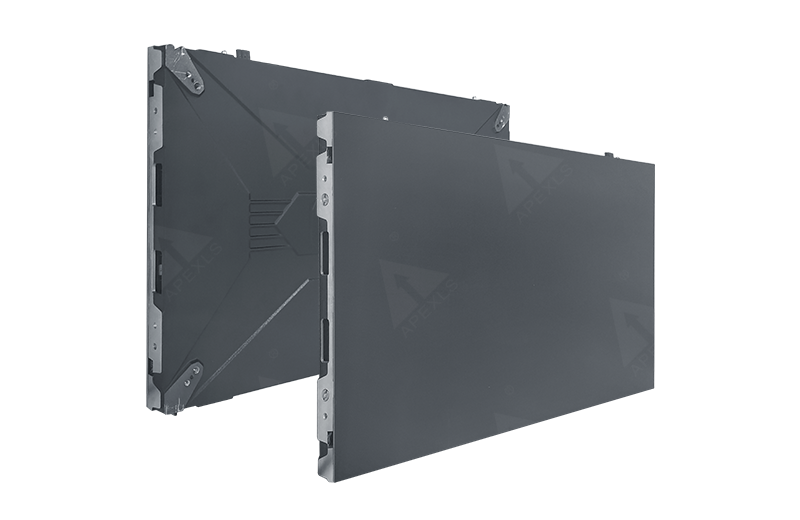

Cabinet Size(mm): 600×337.5X29
The Apexls Indoor LC Series adopts advanced micro COB LED display technology, ensuring ultra-clear visuals for control rooms, studios, and commercial spaces. Its 600×337.5mm cabinet with a 16:9 aspect ratio enables precise and seamless large-screen configurations.

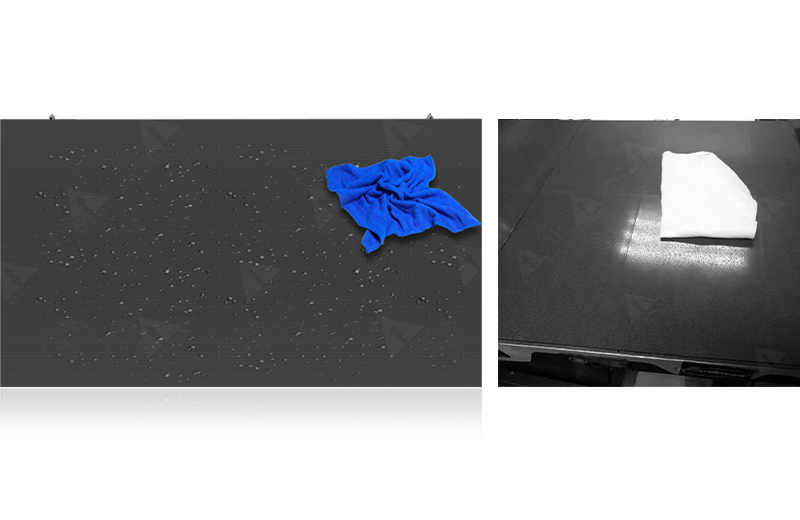

The display features front IP65 protection, making it waterproof, dustproof, and anti-static. The COB encapsulation prevents scratches and moisture damage, extending screen life and reliability in complex environments.

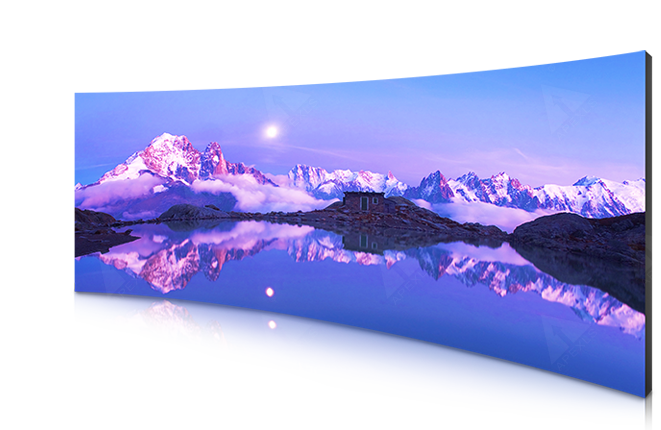

Apexls ensures exceptional flatness and seamless splicing performance. The micro COB LED display maintains uniform brightness and color consistency, producing immersive visuals without visible gaps.

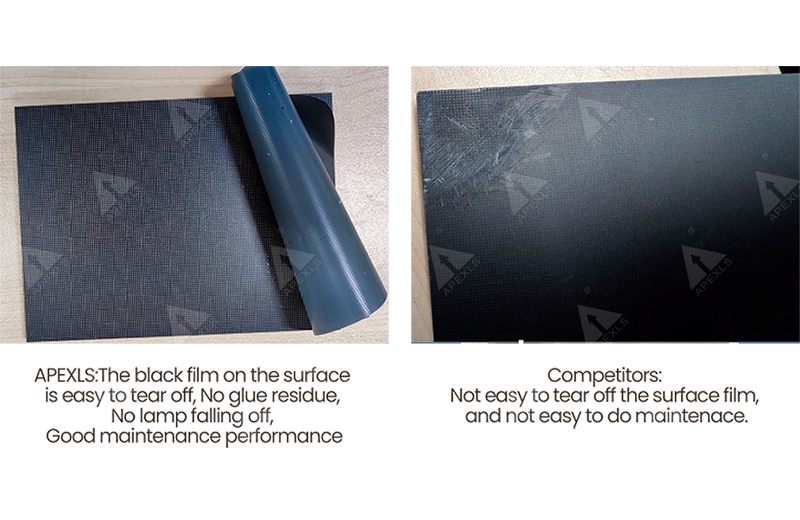

An ultra-thin optical film encapsulation enhances display uniformity and light transmission. This composite packaging design simplifies maintenance while improving durability and visual performance.
| Model | P0.93 | P1.25 | P1.56 |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5625 |
| Module Resolution(dots) | 160*120 | 120*135 | 96*108 |
| Module Size(mm) | 150*112.5 | 150*168.75 | 150*168.75 |
| Module Layout(pcs) | 4*3 | 4*2 | 4*2 |
| Cabinet Size(mm) | 600*337.5*46 | 600*337.5*42 | 600*337.5*41 |
| Pixel Density(dots/m2) | 1,137,777 | 640,000 | 409600 |
| Seam(mm) | ≤0.15 | ≤0.15 | ≤0.15 |
| Maintenance | Front | Front | Front |
| Brightness(nits) | 1000(peak)500(Typ.) | 800(peak)500(Typ.) | 800(peak)500(Typ.) |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% |
| Dark Contrast | 1000000：1 | 1000000：1 | 1000000：1 |
| Color Gamut | NTSC 110% | NTSC 110% | NTSC 110% |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 |
| Max. Power(W/m2 at 500nit ) | 320 | 320 | 230 |
0
· Product: P1.875/P2.5/P4
· Screen Size: 435 sqm
· Location: Jan 2022
0
· Product: P2
· Screen Size: 17.7 sqm
· Location: October 2020
0
· Product: P1.5/P2 LED Small Spacing display
· Screen Size: 83.39 sqm
· Location: January 2023
