light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P1.5, P1.9, P2.6, P2.9, P3.9
Cabinet Size(mm): 500×500,500X1000

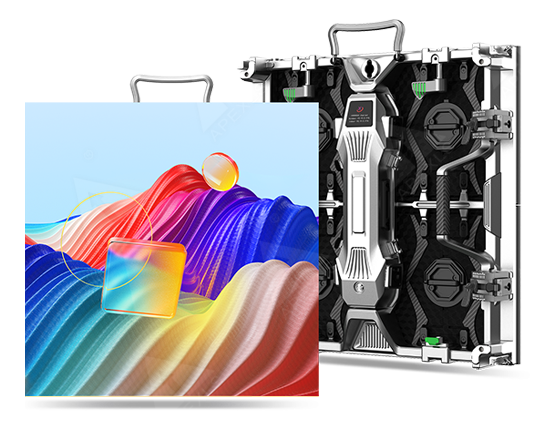

The Apexls KD-D Series LED rental display panels are designed for professional stage and event applications. With a lightweight structure and modular controller, PSU, and LED modules, these panels ensure fast installation, easy maintenance, and reliable performance for long-term use.

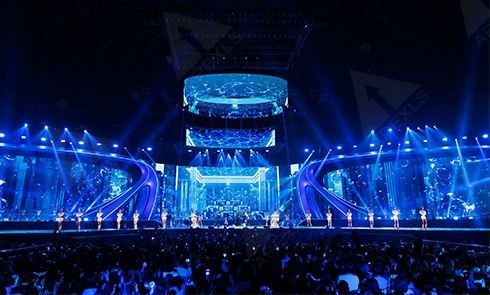

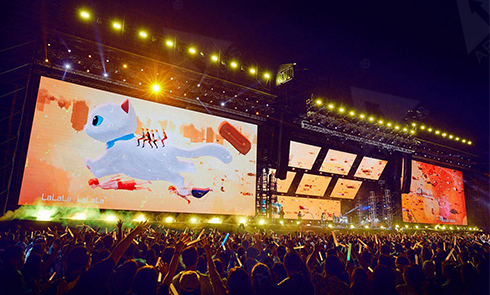

Our LED rental display panels are widely used in concerts, TV shows, exhibitions, theaters, and large-scale entertainment events. With flexible cabinet sizes (500x500mm and 500x1000mm), the panels can adapt to different indoor rental display needs and deliver excellent visual performance.
The Apexls KD-D Series LED rental display panels are designed for professional stage and event applications. With a lightweight structure and modular controller, PSU, and LED modules, these panels ensure fast installation, easy maintenance, and reliable performance for long-term use.

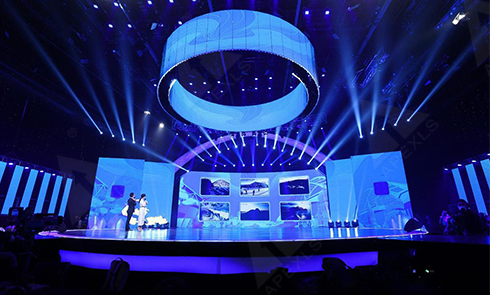

Enable the display screen to present a variety of shapes, including raised or recessed arcs, to attract the audience’s attention and provide a unique visual experience.
The panels support splicing into raised or recessed curved shapes, creating dynamic visual effects for stage design. This flexibility enhances audience engagement, making Apexls LED rental display panels a creative solution for high-impact indoor events and performances.
The KD-D Series LED rental display panels support both front and rear maintenance, ensuring easy servicing in different installation environments. With an anti-knock design, the panels are also compatible with floor LED tile screens, increasing versatility for event setups.
Module corner protection effectively protects the module from bumps.
Quick installation, quick locking on both sides, easy to install. High strength fast lock design, durable, and fast disassemble & disassemble.
With high brightness and clarity, it can provide clear visual effects in various environments, even displaying excellent results outdoors or in bright environments.
The refresh rate is optional at 3840/7680, with a grayscale of up to 16 bits, which can display image details and color levels, presenting stunning visual effects.
LED rental screens can be assembled into screens of different sizes and shapes according to needs, adapting to various venues and requirements, and providing customized display solutions.
KD series support hoisting and stacking, it also provides the installation solution of the easy frame to help customers save labor costs and material costs.
| Operating environment | Indoor | Outdoor | ||||||
| Model | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 | P2.6 | P2.97 | P3.91 |
| Pixel pitch(mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 |
| Pixel density(dots/m²) | 409,600 | 262174 | 147475 | 112896 | 65536 | 147475 | 112896 | 65536 |
| Scanning Method | 1/40 | 1/32 | 1/24 | 1/21 | 1/16 | 1/24 | 1/21 | 1/16 |
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution (dots) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 96X96 | 84×84 | 64×64 |
| Cabinet size(mm) | 500X500/500X1000(87mm thickness) | 500X500/500X1000(87mm thickness) | ||||||
| Cabinet weight(kg/m²) | 7/12.5 | 7/12.5 | ||||||
| Cabinet material | Die-casting aluminium | Die-casting aluminium | ||||||
| Maintenance Mode | Front/Rear | Front/Rear | ||||||
| Brightness(cd/m²) | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 650-1100 | 4700 | 5800 | 2400 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Gray Scale(bit) | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Ave. Power(W/m²) | 164 | 150 | 150 | 150 | 150 | 267 | 267 | 267 |
| Max. Power(W/m²) | 410 | 410 | 410 | 410 | 410 | 800 | 800 | 800 |
