CNC machining
light & thin
Brilliant colour
High definition
Model(mm): P1.86，P2，P2.5 ，P3
Cabinet Size(mm): 640×640，640×480， 320×640，320×480
The KI Series HD Indoor LED Display by Apexls merges cutting-edge technology with stunning media presentation. This full-color LED screen offers a flat, seamless surface, ensuring an ultra-clear and sharp image display. With a wide viewing angle, it maintains vibrant, true-to-life color reproduction and excellent stability, ideal for high-traffic environments.
The KI Series Indoor LED Display is ideal for various settings, including conference rooms, hotels, shopping malls, and studio backgrounds. Its sleek design and powerful functionality make it suitable for both small and large venues. Whether used as a focal point for advertising, digital signage, or presentations, it elevates any space with its clear, engaging visuals. Its versatility makes it a preferred choice for businesses aiming to captivate audiences across multiple industries.

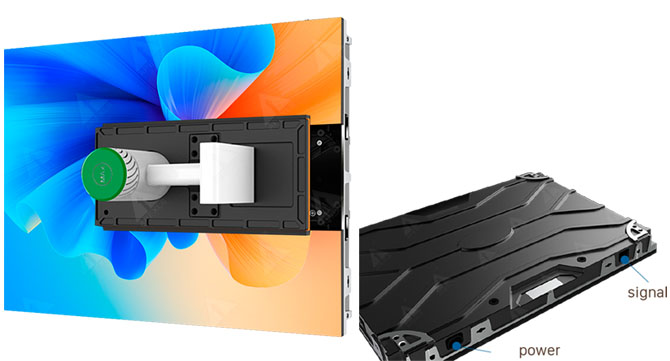

This HD indoor LED display is designed for ease of use, with front assembly and maintenance support. It features a dual backup system for both the power supply and the display system itself, ensuring continuous operation without disruptions. This makes the KI Series highly reliable for long-term use, even in demanding environments like control rooms and stage setups, where uptime is critical.

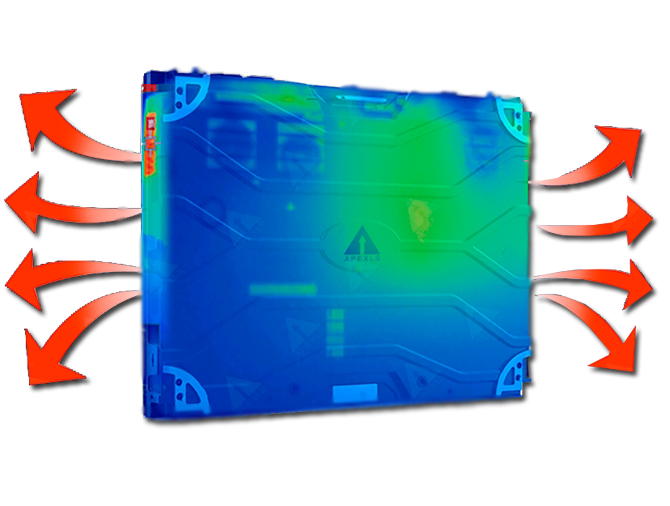

The KI Series Indoor LED Display is housed in a die-cast aluminum cabinet, providing not only excellent heat dissipation but also a lightweight and ultra-thin design. At just 63mm thick, the display offers a compact yet robust structure. This ensures stability while maintaining a slim profile that fits seamlessly into any installation space, making it ideal for both indoor and limited-space setups.
With the integration of the GOB module (Glue on Board), the HD Indoor LED Display is built to withstand the rigors of high-traffic environments. The GOB module offers enhanced protection against dust, moisture, and physical impacts. This anti-collision, anti-moisture, and anti-dust feature makes the display more durable and reliable, reducing maintenance costs and downtime.

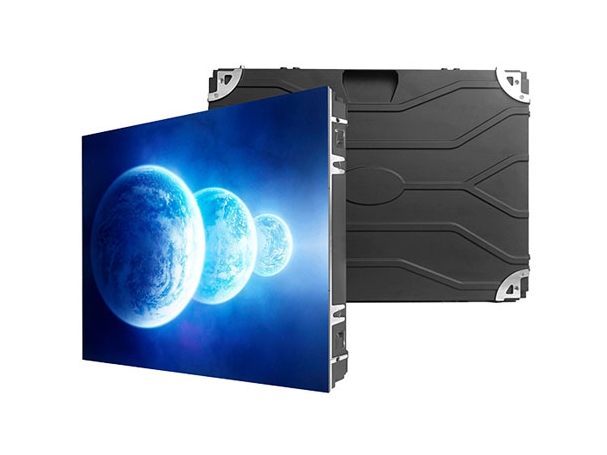

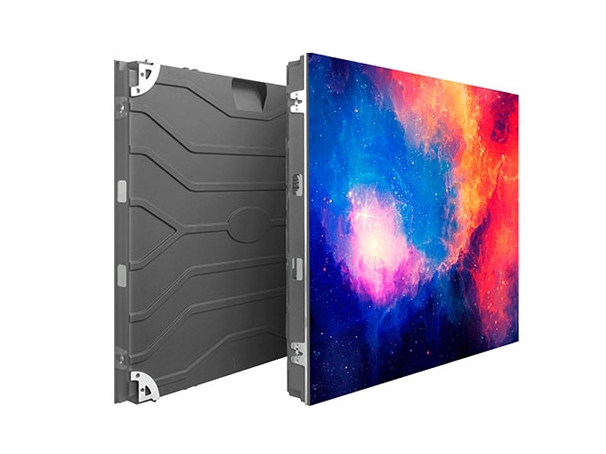

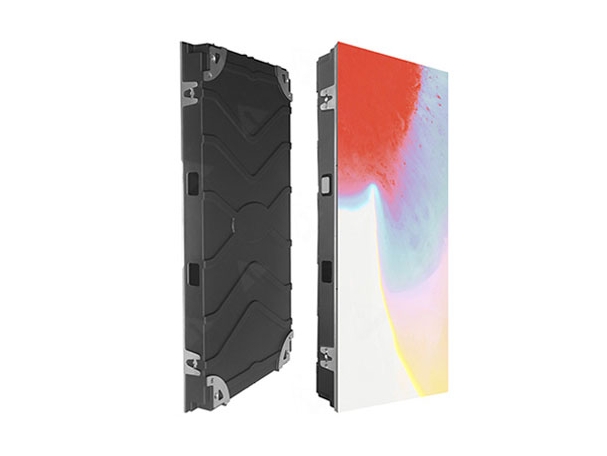

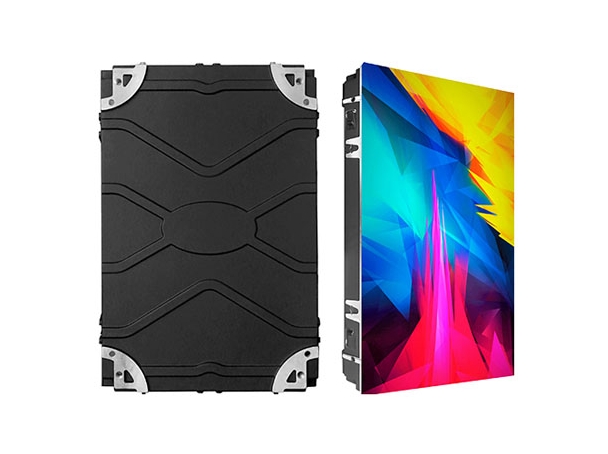

The APexls offers four cabinet size options, which can be mixed and assembled to accommodate various installation requirements. This flexibility ensures that the display can fit any venue size, from small retail spaces to large conference halls. The high-strength die-cast aluminum cabinet guarantees no deformation over time, ensuring a long-lasting and stable display solution.
| Model | P1.8 | P2 | P2.5 | P3 |
| Pixel Pitch(mm) | 1.86 | 2.00 | 2.5 | 3.07 |
| Pixel density (pixels) | 289,050 | 250,000 | 160,000 | 105,625 |
| Scan | 1/43 | 1/40 | 1/32 | 1/26 |
| LED config | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module size (mm) | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Module resolution(pixels) | 172 x 86 | 160 x 80 | 128×64 | 104 x 52 |
| Cabinet size (mm) | 640×640 / 640×480 / 320×640 / 320×480 | |||
| Cabinet resolution(pixels) | 344×344 / 344×258 172×344 / 172 x 258 | 320×320 / 320×240 160 x320 / 160 x 240 | 256×256 / 256×192 128 x 256 / 128 x 192 | 208×208 / 208×104 104 x 208 / 104 x 156 |
| Cabinet weight(kg/m²) | 22 | |||
| Cabinet depth(mm) | 63mm(Including module) | |||
| Cabinet material | Die-casting aluminium | |||
| Service | Front service | |||
| Viewing angle(°) | Horizontal 160° Vertical 160° | |||
| Viewing distance(m) | 1.5-80 | 2-80 | 2.5-80 | 3-80 |
| Brightness(nits) | 800-1,200 | 800-1,200 | 800-1,200 | 700-1,000 |
| Refresh rate (Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 3840 |
| Gray scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 |
| Brightness control | 256 | 256 | 256 | 256 |
| Ave.Power consumption(W/m²) | ＜190 | ＜230 | ＜210 | ＜230 |
| Max.Power consumption(W/m²) | ＜580 | ＜680 | ＜630 | ＜670 |
| Input power frequency | ＞ 60 Hertz | |||
| Operating voltage | AC100V-240V 50-60Hz | |||
| Blind spot rate | ＜1/10,000 | |||
| Lifetime（hours） | 100,000 | |||
| MTBF(hours) | >10,000 | |||
| Operating temperature(℃) | ﹣30～﹢50 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||
| Operating system | Windows | |||
| Certificate | CE ETL FCC RoHS | |||
