light & thin
Install quickly
High-definition image
Die-cast aluminum
Model(mm): P1.2, P1.5, P1.9, P2.5, P2.9, P3.91
Cabinet Size(mm): 500×500
The KV Series rental indoor LED display represents Apexls’ new generation of lightweight, modular rental solutions. With controller, module, and PSU designed for easy maintenance, it ensures flexible use across concerts, TV shows, and large-scale entertainment programs.
This rental indoor LED display is widely applied in concerts, TV shows, commercial exhibitions, and entertainment venues. Its high reliability and vivid display quality make it a preferred choice for event organizers and stage designers seeking impactful visual experiences.

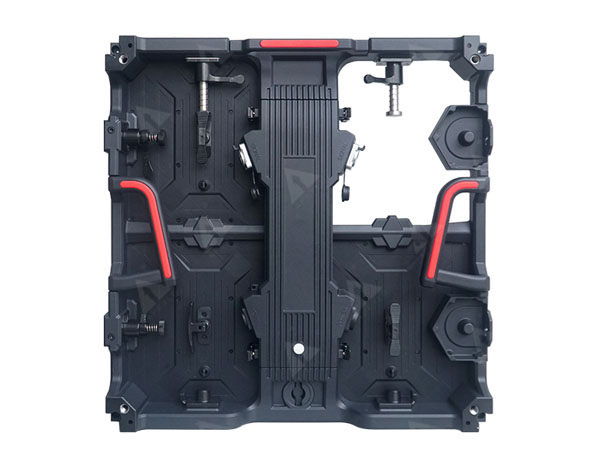

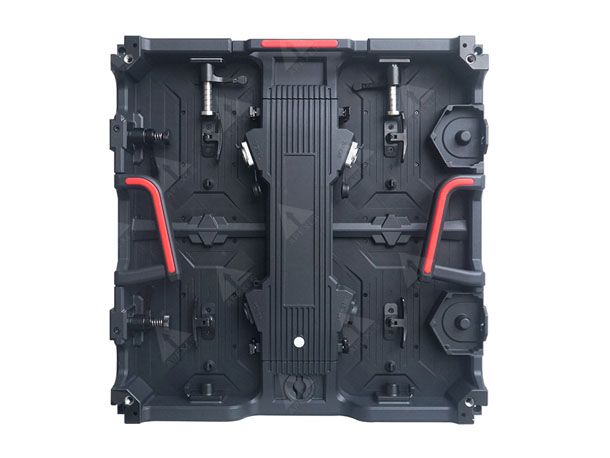

Featuring a simplistic frame design with a cabinet thickness of only 68mm, the KV Series rental indoor LED display is light yet durable. Equipped with reliable hardware backup, it guarantees stability during live events where consistent performance is critical.

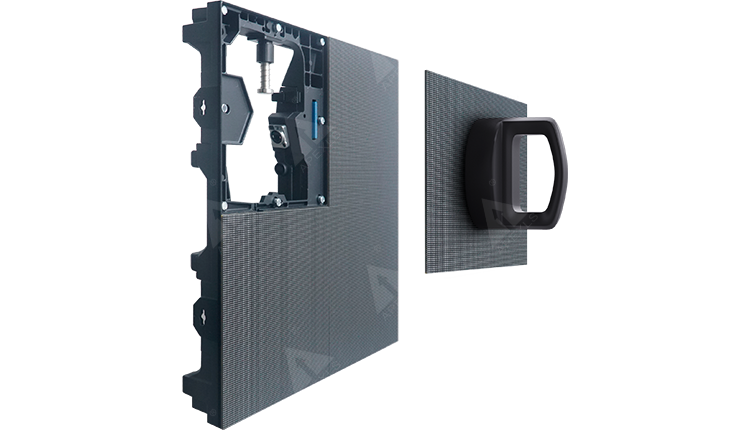

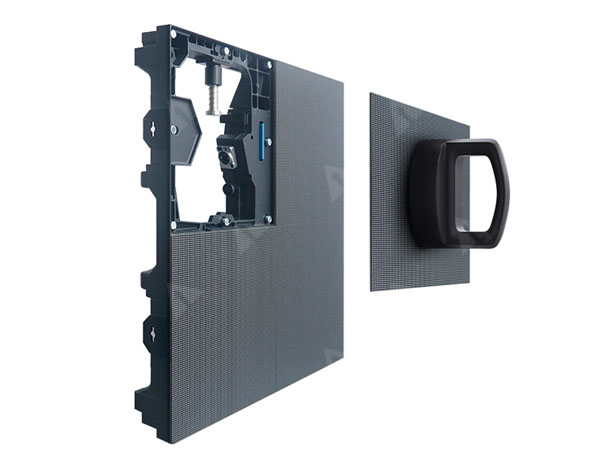

The rental indoor LED display supports both front and rear service, offering higher flexibility for installation in complex venues. Its anti-knock design also makes it compatible for use as a floor LED tile screen, improving versatility for different stage setups.
The KV rental indoor LED display adopts a modular design, making module and PSU replacement quick and efficient. This design minimizes downtime during events, ensuring that organizers can maintain high-quality visual performance without interruptions.
KV series support hoisting and stacking, it also provides the installation solution of the easy frame to help customers save labor costs and material costs.
| Model | P1.2 | P1.5 | P1.9 | P2.5 | P2.9 | P3.9 |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.953 | 2.5 | 2.976 | 3.906 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density(dots/m²) | 640,000 | 409,600 | 262,178 | 160,000 | 112,910 | 65,536 |
| Module Size(mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution(dots) | 200×200 | 160×160 | 128×128 | 100×100 | 84×84 | 64×64 |
| Cabinet Size(mm) | 500x500x68 | 500x500x68 | 500x500x68 | 500x500x68 | 500x500x66 | 500x500x66 |
| Cabinet Resolution(dots) | 400×400 | 320×320 | 256×256 | 200×200 | 168×168 | 128×128 |
| Cabinet Weight(kg) | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 |
| Brightness(cd/m²) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Cabinet Material | Die-casting Aluminum | |||||
| Service | Front / Rear | |||||
| Viewing angle(°) | H140/V140 | |||||
| Gray Scale(bit) | 14 | |||||
| Refresh Rate(Hz) | 3840 | |||||
| Power Avg.(W/m²) | 267 | |||||
| Power Max.(W/m²) | 570-620 | |||||
| IP grade(front & back) | IP40 | |||||
| Life Span | 100000 | |||||
