High Design Flexibility
Front maintenance or rear maintenance
Model(mm): P10, P12, P15, P16

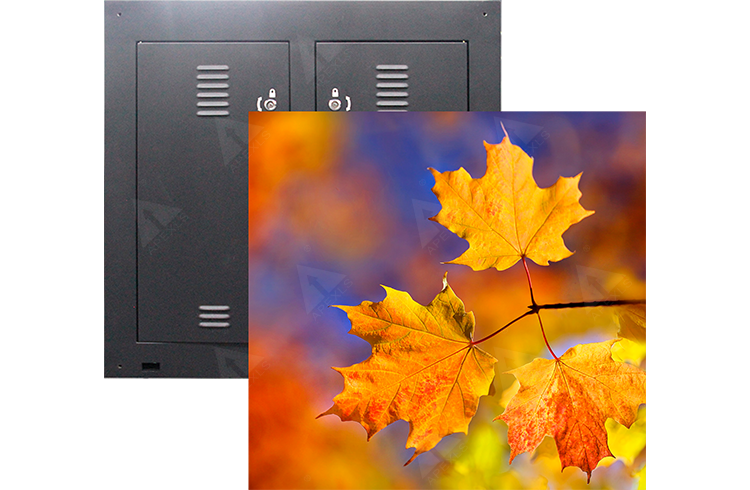

The Apexls KN-DIP Series outdoor DIP LED display delivers outstanding brightness and clarity for large-scale outdoor advertising. Featuring a brightness level of up to 10,000 nits, it ensures excellent visibility even under strong sunlight. Designed for high durability and low power consumption, this display provides consistent performance in all weather conditions.
This outdoor DIP LED display is widely used in public squares, building facades, airports, train and bus stations, and highways. Its strong visual impact and energy-efficient design make it a preferred choice for outdoor advertising networks. Whether for commercial billboards or public information displays, it delivers stable operation and vivid image quality.

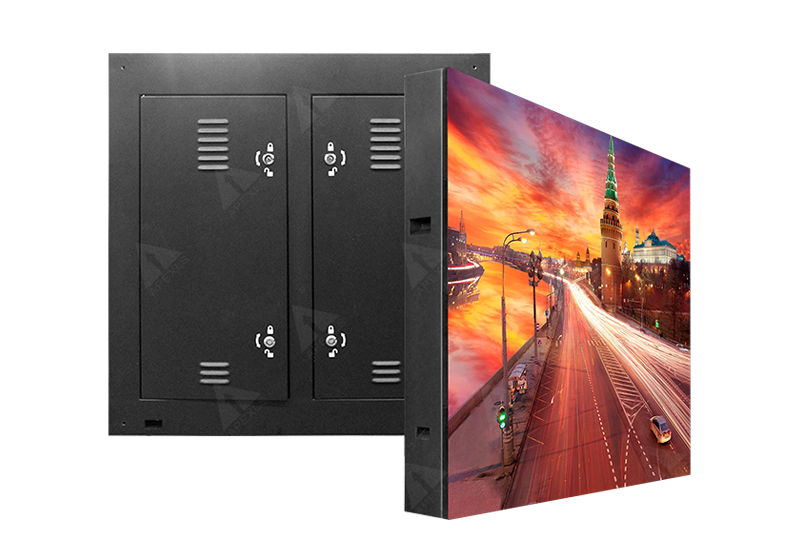

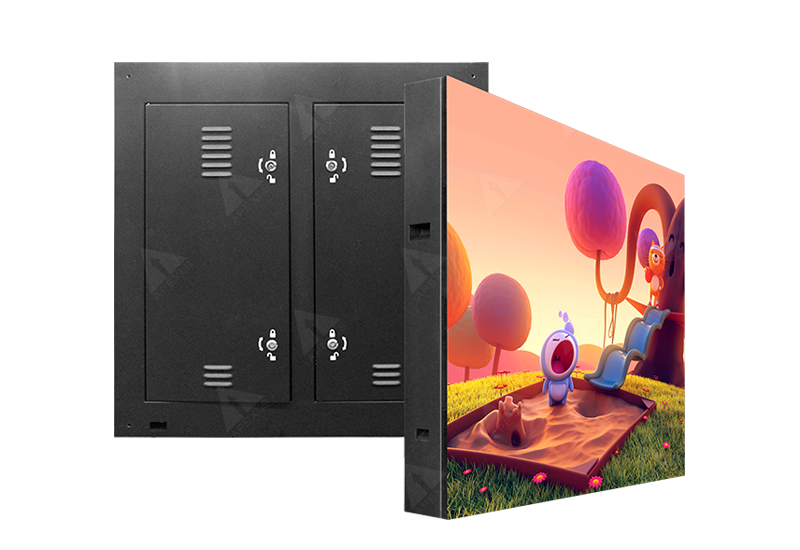

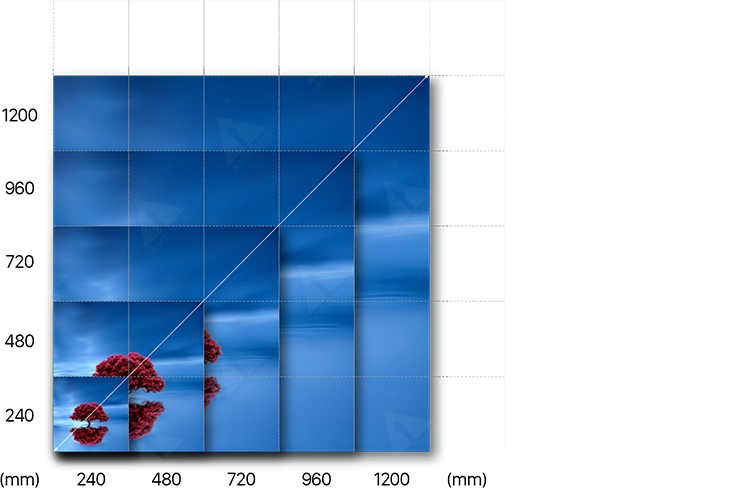

The Apexls DIP LED display offers various cabinet sizes including 960×960mm, 720×960mm, 1200×960mm, and 1200×1200mm. It supports flexible installation for different outdoor projects.

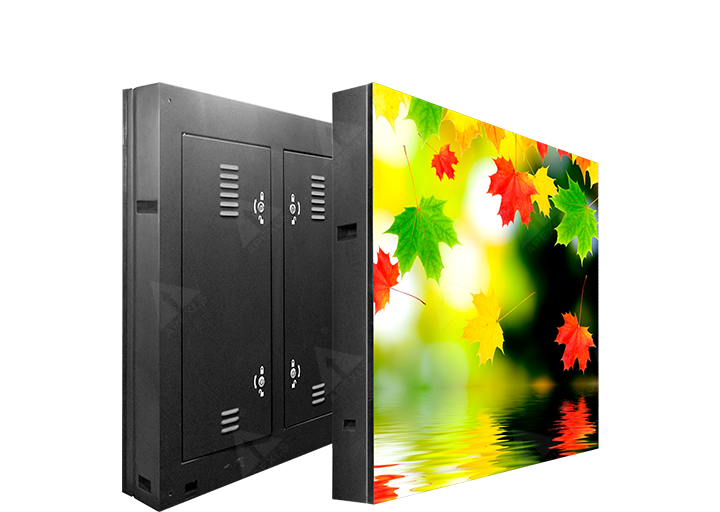

For easy servicing, the outdoor DIP LED display supports both front and rear maintenance options. This flexibility reduces downtime and simplifies operations for maintenance teams. Built with a strong, weather-resistant cabinet, the display withstands harsh outdoor environments, ensuring long service life and reliable performance.
Equipped with ultra-high brightness LED chips, the Apexls outdoor DIP LED display ensures vivid colors, excellent contrast, and stable performance under direct sunlight. Even in high ambient light environments, the display maintains superior clarity, enhancing advertising visibility and brand impact across outdoor locations.
The display can be customized into flat, curved, right-angle, or round shapes to meet creative design requirements while maintaining seamless image transitions.
| Model | P10 | P12 | P15 | P16 |
| Pixel Pitch(mm) | 10 | 12 | 15 | 16 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | DIP 346 | DIP 346 | DIP 346 | DIP 346 |
| Pixel Density(dots/m²) | 10,000 | 6,944 | 4,444 | 3,906 |
| Cabinet Size(mm) | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Resolution(dots) | 96×96 | 80×80 | 64×64 | 60×60 |
| Module Size(mm) | 240X240 | 240X240 | 240X240 | 240X240 |
| Module Resolution(dots) | 24×24 | 20×20 | 16×16 | 15×15 |
| Cabinet Material | Aluminum / Iron | |||
| Cabinet Weight(kg) | around 50-60 kg/m² (Iron) ; around 35-40 kg/m² (Aluminum) | |||
| Brightness(cd/c) | 7,500 | 7,500 | 7,500 | 7,500 |
| Power Avg.(W/m²) | 200 | 200 | 200 | 200 |
| Power Max.(W/m²) | 550 | 550 | 550 | 550 |
| Refresh Rate(Hz) | 1920~3840 | |||
| Gray Scale(bit) | 12 ~ 16 | |||
| Installation/Maintenance | Front / Rear | |||
| Certification | CE ETL FCC RoHS | |||
