Waterproof design
Front maintenanceby fast lock
Model(mm): P6.67，P8，P10
Cabinet Size(mm): 960×960

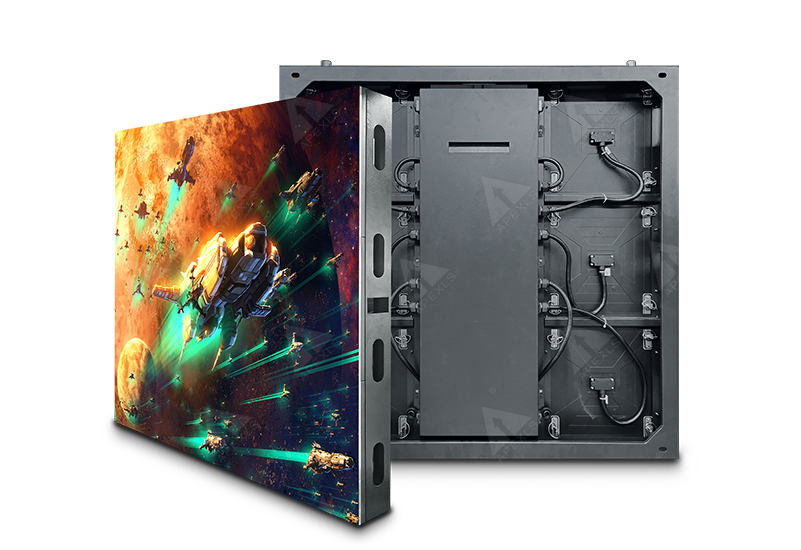

Apexls KAS Series outdoor LED display board delivers brilliant performance in any environment. Built for outdoor advertising, it ensures exceptional visibility in daylight and stable operation in all weather. Perfect for city squares, airports, stations, and commercial centers, this display offers brands a powerful way to connect with audiences.

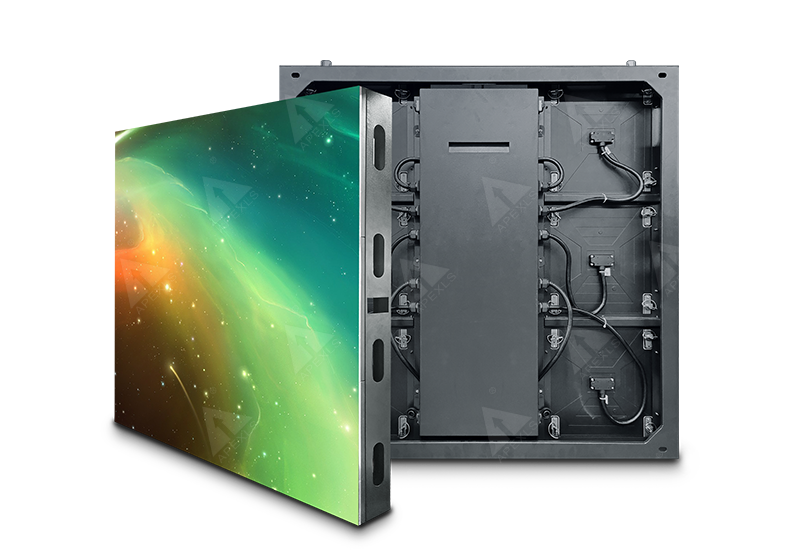

Apexls understands that every project is different. The customized cabinet size design allows flexible configurations to match specific installation requirements. Whether for a large building façade or a compact outdoor sign, the modular system ensures seamless splicing and easy scalability for clients.

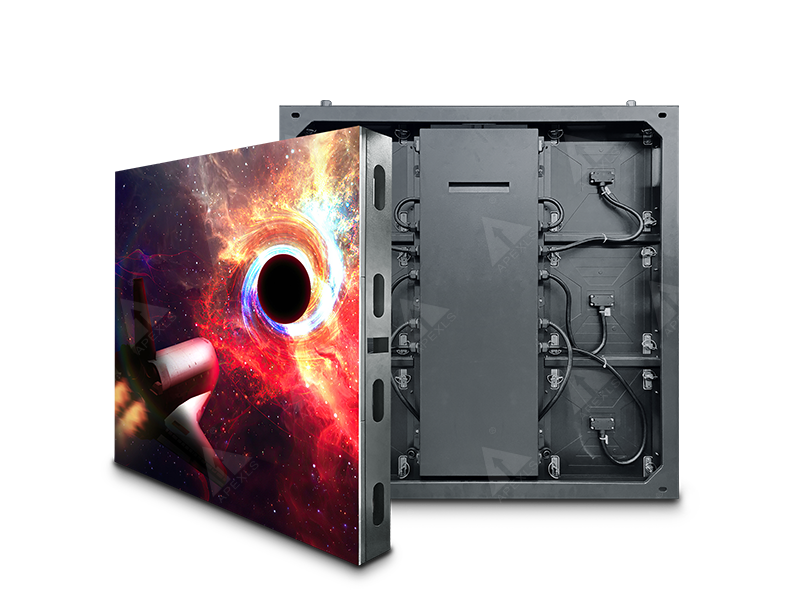

The front maintenance with a fast lock mechanism simplifies the service process. Technicians can easily access and replace modules without disassembling the structure, minimizing downtime and maintenance costs. This smart design enhances the reliability and practicality of outdoor installations.

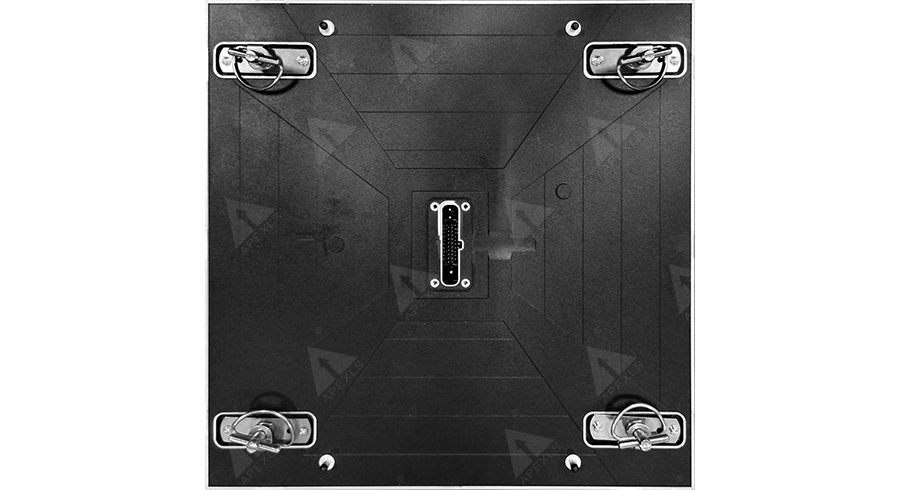

The KAS Series features an IP65-rated enclosure with a fully sealed module shell and waterproof plug. This design ensures complete protection against rain, dust, and humidity, making it ideal for long-term outdoor operation in all climates. The structure also supports excellent heat dissipation for stable performance.

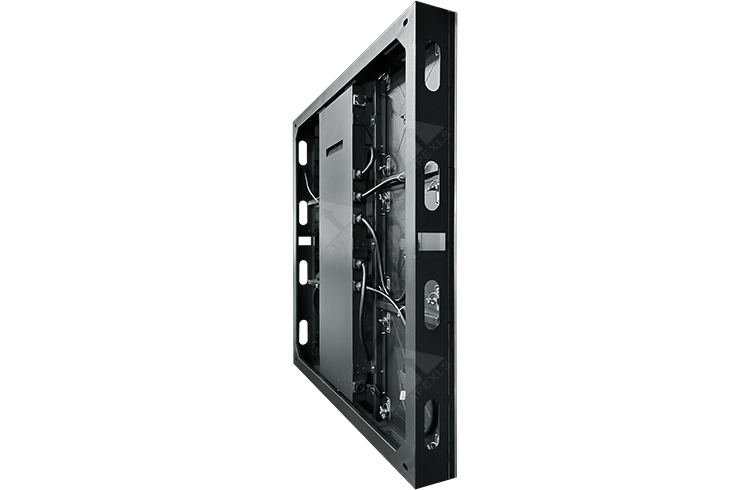

At only 80mm thickness and around 34.5 kg per square meter, the outdoor LED display board is easy to install and transport. The lightweight iron cabinet design reduces load-bearing pressure while maintaining exceptional strength, ensuring safety and convenience for large-scale projects.
| Model | P6.67 | P8 | P10 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density(dots/m²) | 22,477 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960×960 | 960×960 | 960×960 |
| Cabinet Resolution(dots) | 144×144 | 120×120 | 96×96 |
| Module Size(mm) | 320×320 | 320×320 | 320×320 |
| Module Resolution(dots) | 48×48 | 40×40 | 32×32 |
| Cabinet Material | Aluminum / Iron | ||
| Cabinet Weight(kg) | 34.5kg(Iron) | ||
| Brightness(cd/c) | 6,000 | 5,000 | 5,500 |
| Power Avg.(W/m²) | 300 | 300 | 300 |
| Power Max.(W/m²) | 650-720 | 650-720 | 650-720 |
| Refresh Rate(Hz) | 1920~3840 | ||
| Gray Scale(bit) | 12 ~ 16 | ||
| Installation/Maintenance | Front / Rear | ||
| Certification | CE ETL FCC RoHS | ||
