Model, size customization
Multiple display surfaces
Model(mm): P2.5 ，P4

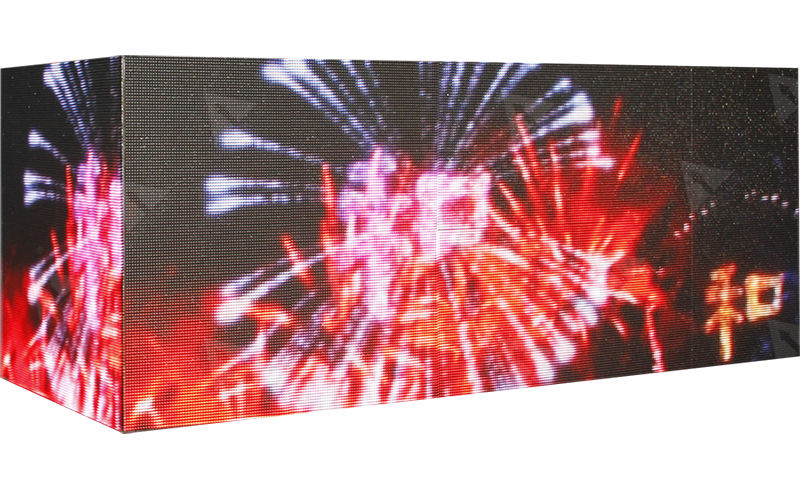

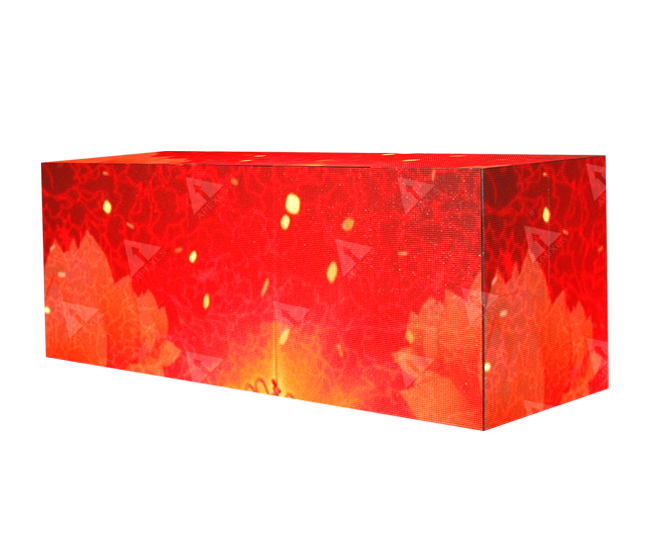

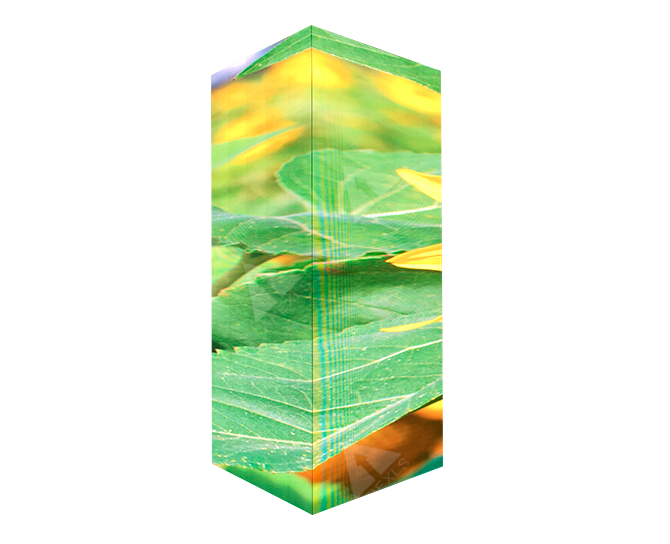

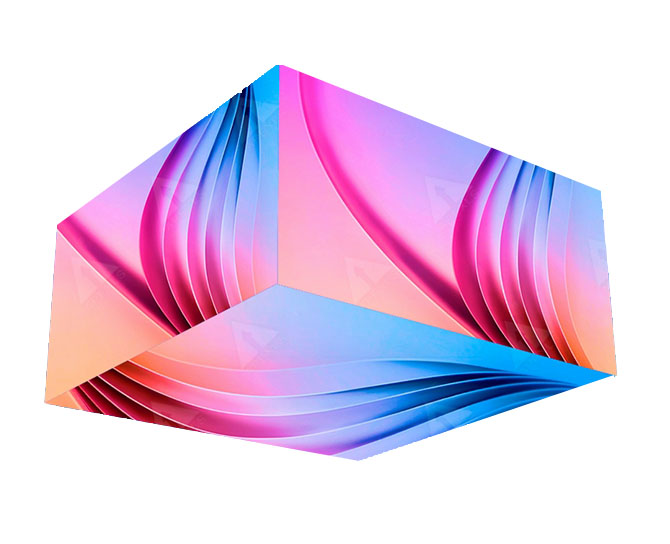

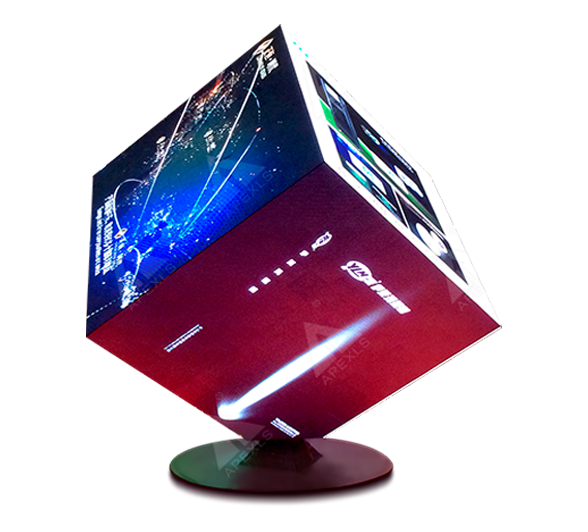

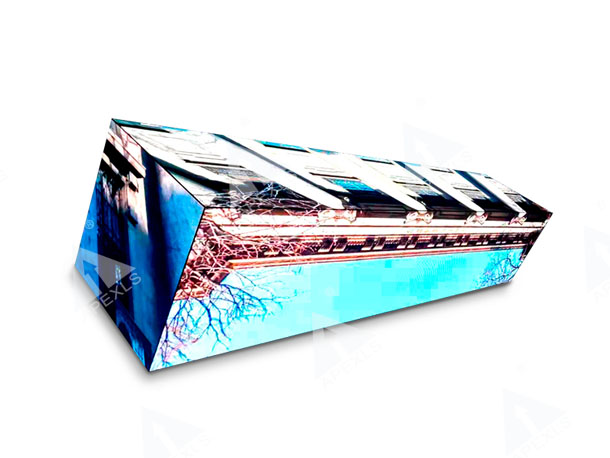

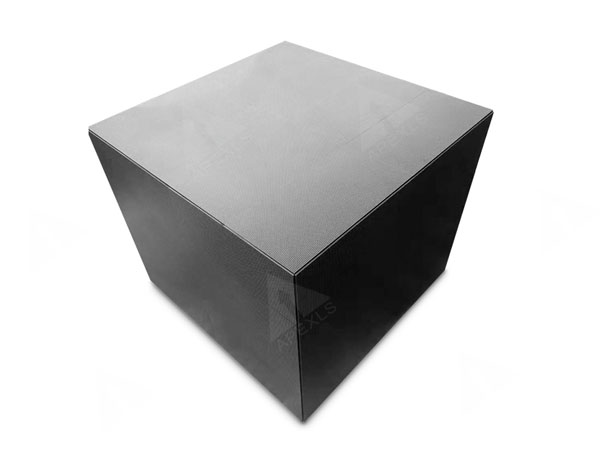

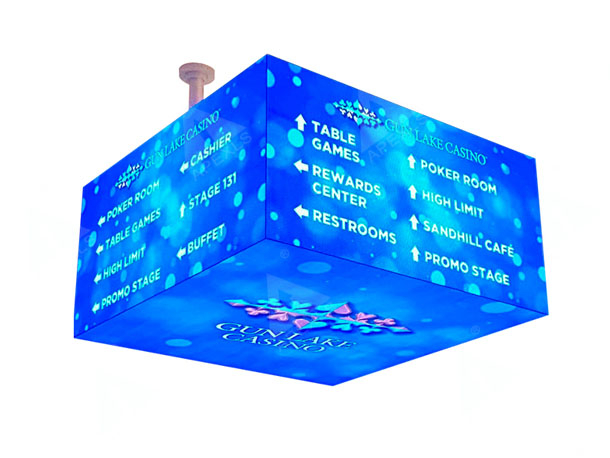

The cube LED display delivers a seamless 360-degree viewing angle, making it a striking solution for museums, exhibitions, and planetariums. With its unique cube shape and rotating options, it enhances visual engagement while boosting brand value in commercial environments.
Widely applied in science museums, children’s palaces, exhibition halls, and gymnasiums, the cube LED display is designed for high-end branding needs. Its innovative shape and vivid performance create unforgettable visual experiences, helping businesses achieve stronger audience engagement.
This LED cube provides distortion-free and color-consistent images. By supporting customized video sources, it can present stereoscopic visuals that captivate audiences. The cube LED display also allows flexible control via WiFi, 4G, 5G, or USB, making content updates and advertising management efficient.
Based on our rich experience in designing customized display with irregular shapes, we optimized the inner structure and module bottom shell of led cube to ensure the minimum joint of the display surface, in order to achieve the best display effect.
High color uniformity and clear image can bring you a vivid audio visual effect.The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity
Six display faces can show six kinds of different content respectively or work as a whole to show the same video. Led cube has special shapes and can also be used as high-tech artworks to decorate the environment.
| KC Series Cube LED Display | ||
| Model | P2.5 | P4 |
| Pixel Pitch(mm) | 2.5 | 4 |
| LED Type | SMD1515 | SMD2121 |
| Pixel Density(dots/㎡) | 160000 | 62500 |
| Viewing Distance(m) | 2.5 | 4 |
| Brightness(cd/㎡) | ≥1200 | ≥1500 |
| Avg Power Consumption(W/㎡) | 200-250 | 250-300 |
| Max Power Consumption(W/㎡) | 520 | 620 |
| Refresh Rate(Hz) | 4096 | |
| Input Voltage | AC100-240V/50-60Hz | |
| Life Span | 100,000 hours | |
| Package | Flight case or Wooden case | |
| Certification | CE/RoHs/ETL |
|
| Supplier Type | Original manufacturer, ODM,OEM | |
